SPECIFICATIONS

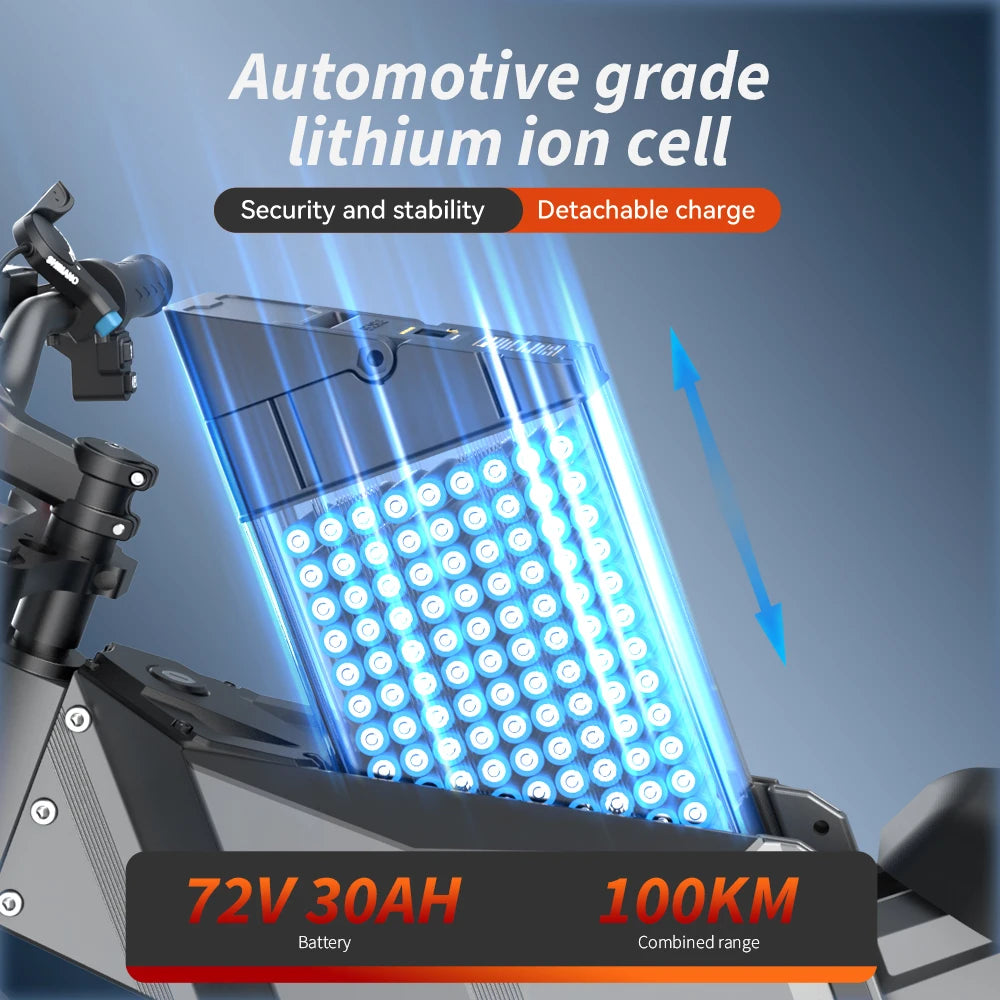

Battery: 72V 30Ah battery (21700 lithium battery)

Bicycle height: 110cm

Bicycle weight: 67.2kg

Brake: Dual piston oil brake, equipped with 180mm stainless steel brake discs

Brand Name: EKXBIKE

Chain: 7-speed rust proof 130 sections, 1/2 inch * 3/32 inch

Charger: 72V3A charger

Charging time: 3.5-8.0 hours

Controller: 72V 80A

Crankcase: Aluminum 170 * 48T single cover

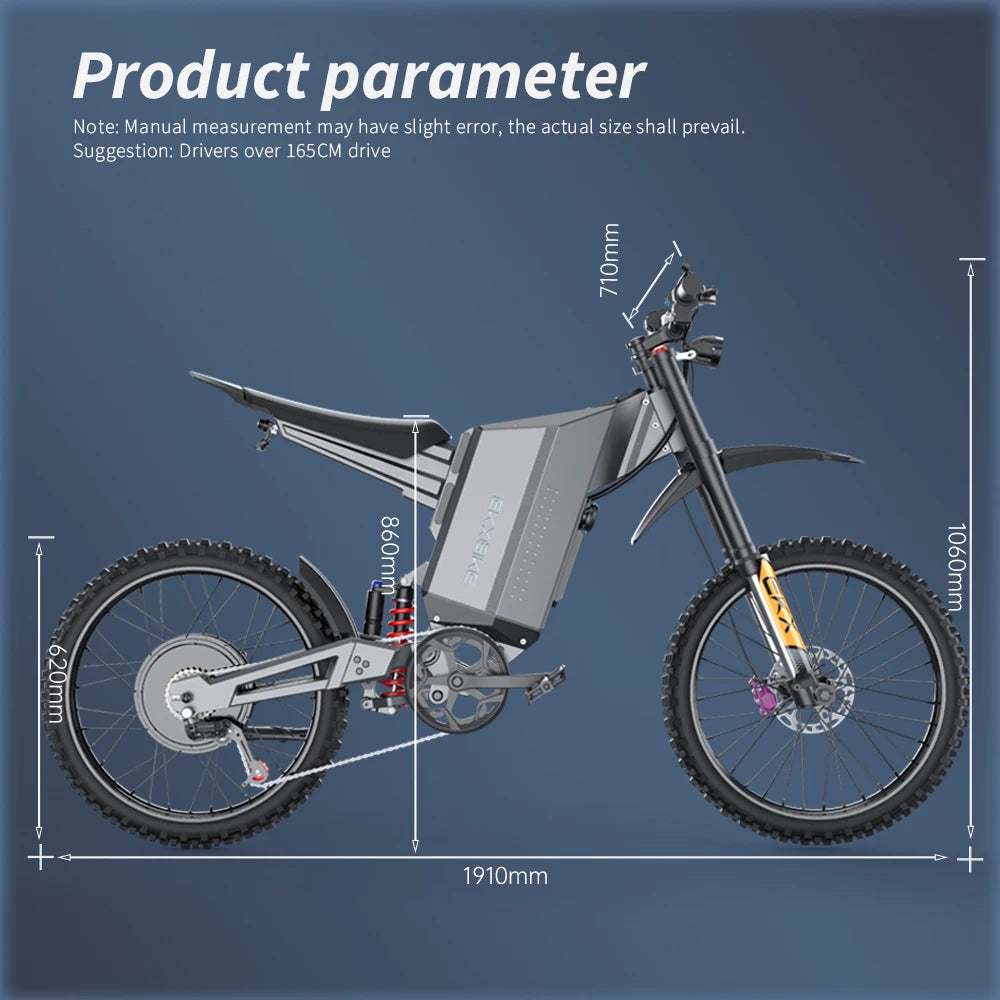

Dimensions: 188 * 72 * 109cm

Energy: 2160Wh

Folded: No

Framework: 6061-T6 aluminum alloy CNC machining and welding forming

Front suspension: 24 inch all aluminum dual shoulder front reduction, with a travel of 170 millimeters

Handle width: 72cm

Headlights: Double eye spotlight, 18W 260 lux, without turn signal

Hign-concerned Chemical: None

Maximum load: 330 pounds

Maximum torque: 102N. m

Model Number: EKX-GTS

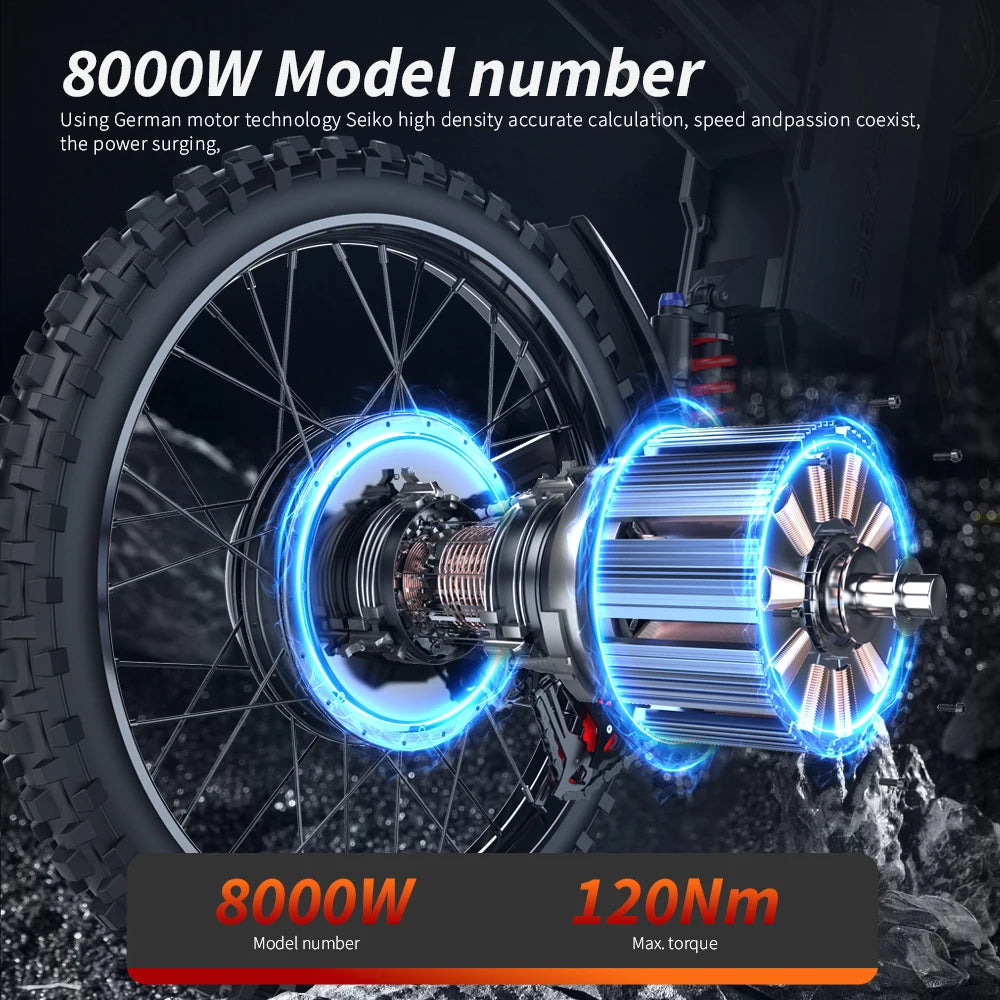

Motor: 72V peak 6650W brushless rear wheel hub motor. 102N.m

Origin: Mainland China

Pedal: Aluminum alloy pedal with reflector light, shaft 9/16 x2

Pedal assist: none

Power Source: Lithium Battery

Power Supply: Lithium Battery

Range: 30-50 miles (50-80km) in low-speed throttle mode (pure electric)

Rear suspension: 450 pounds rear reduction, with a travel of 60 millimeters

Rear transmission: 6-7 speed RD-TZ31A eye shift, ARDTZ31AGSD

Seat height: 87-92cm

Speed: 1st gear at 28 miles per hour (45 kilometers per hour), 2nd gear at 38 miles per hour (60 kilometers per hour), 3rd gear at 50 miles per hour (80 kilometers per hour)

Suitable height: 1.6 meters or more

Tail lights: LED brake tail lights, without turn signals

Throttle: Half throttle

Tire: Chaoyang Tire 70/100-19, with lining

Voltage: > 60 V

Wattage: > 500w

Wheelbase: 126cm
