General

• Brand: COSWHEEL

• Model: Y16

• Type: Electric MotorBike

• Color: Black

Specifications

• Top Speed: Class 2/3, 28 Mph (45Km/h)

• Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)

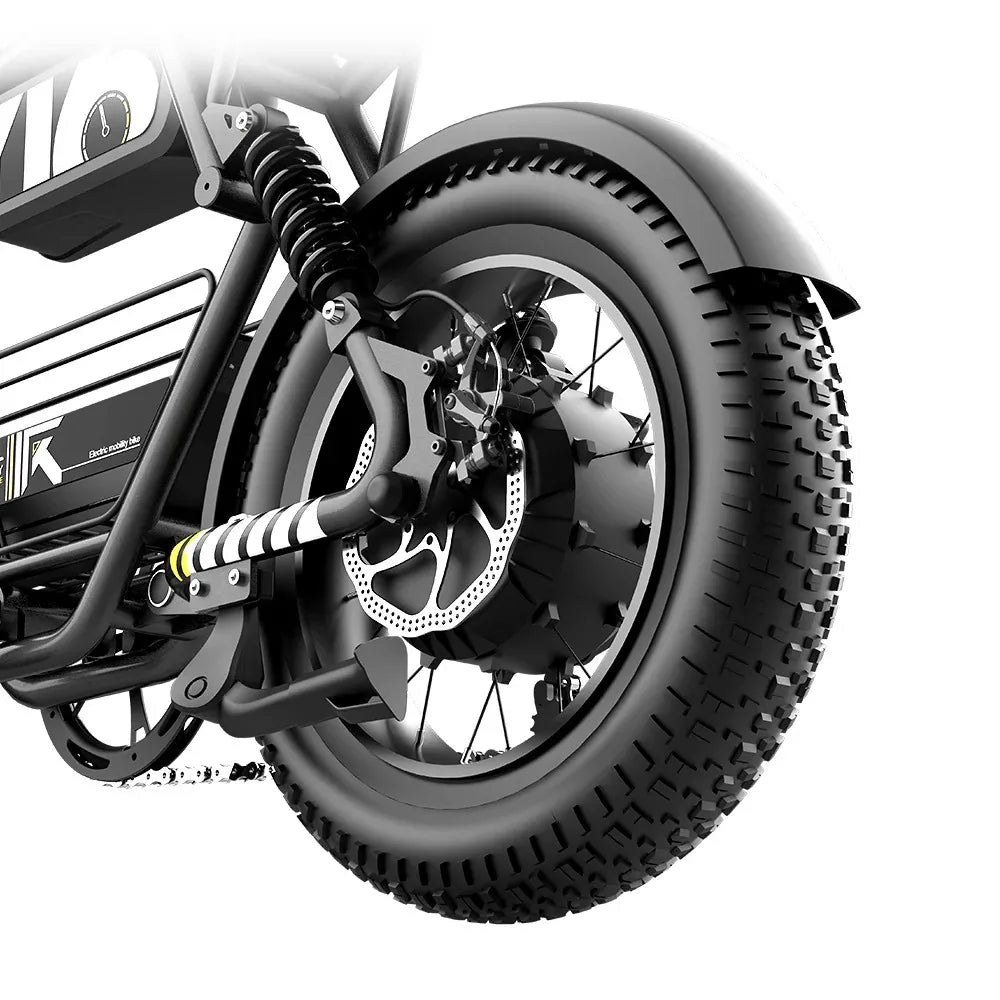

• Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m

• Battery: 48V 15Ah Battery (Lithium 18650 Cells)

• Energy: 720Wh

• Front Suspension: Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel

• Rear Suspension: Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm

• Brakes: Double Disc Brakes, Equipped with 160mm Stainless Brake Disc

• Tires: ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI

• Throttle: Grip Twist Throttle

• Charger: 48V3A Charger

• Charging Time: 3.5-8.0 Hours

• Display: Easy Read LCD Display

• Controller: 48V 22A

• Front Light: Classic Angel Eye Headlight, 120 LUX

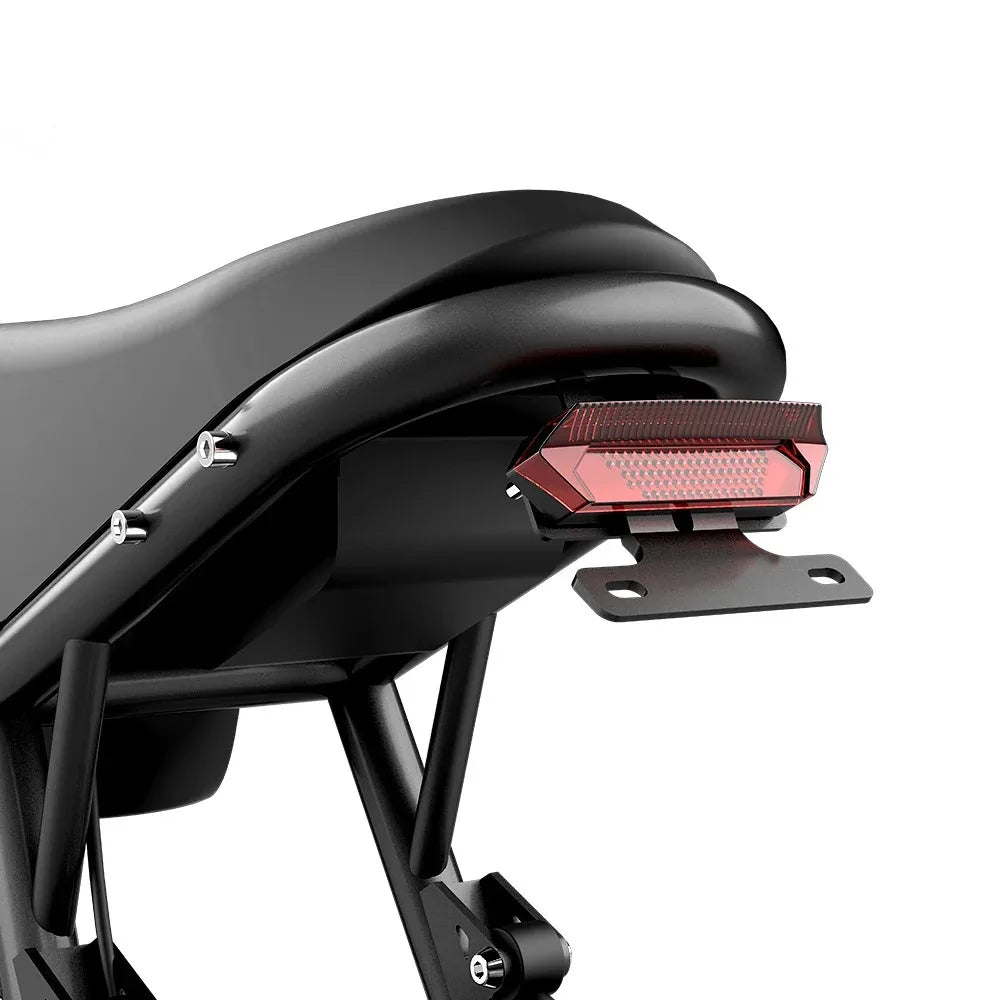

• Rear Light: LED

• Pedal Assist: 3 Levels

• Sensors: Speed Sensor

• Frame: Iron Frame

• Pedal: Black

• Crank: 46T Double Cover*Ffish Shape

• Rear Derailleur: Single Speed

• Chain: Anti-rust, 116 Mesh

• Handlebars: Black, 25.4*L:640mm*H:180mm, 17°

• Suitable Height: 4'11" - 5'11" (4.9ft-5.9ft)

• Seat Height: 29.53" (75cm)

• Bike Height: 39.37" (100cm)

• Wheelbase: 38.58" (98cm)

• Handlebar Width: 25.59" (65cm)

• Bike Weight: ≥97lbs (with Battery) (≥44kg)

• Maximum Load: 330lbs (150kg)

• Safe Load: 265lbs (120kg)

• Overall Size: 60.24" * 25.59" *39.37" (153*65*100cm)

• Package Size: 55.91" * 12.60" * 32.28" (142*32*82cm)

Package Contents

• 1 x Electric Bike

• 2 x Fender

• 1 x Charger

• 1 x User Manual


• 1 x Tool Bag
